7. Testing a mutation in Explorer

🧑‍🔬 Testing our mutation

Now that we have our schema, data source, and resolvers set up with helpful mutation responses, let's get ready to test our mutation in Apollo Studio Explorer.

Let's start up the server by opening up a new terminal window. Here we'll navigate to the server folder with cd server, and run npm start.

With our server running, let's go to studio.apollographql.com to connect to our development graph, which is running on localhost:4000.

First let's check out our schema changelog by clicking on the Schema tab on the left sidebar. We can see that a new type Mutation was added today, with the incrementTrackViews field!

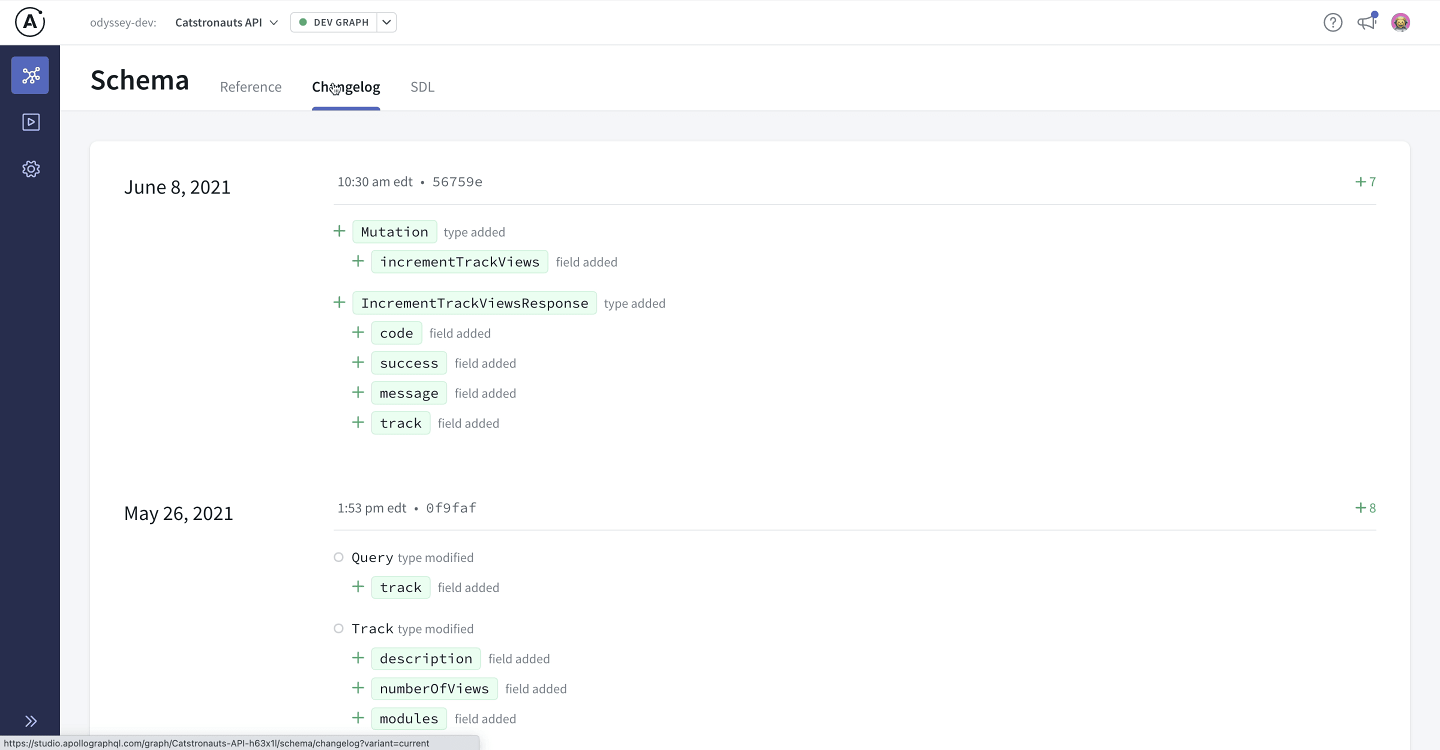

Screenshot of Apollo Studio Changelog

We can click on this incrementTrackViews field to see the Reference tab, where we'll see more details about the mutation, as well as a sidebar on the left to access all the other types in our schema. To open this mutation in the Explorer, let's click on the Play icon.

This takes us to the Explorer page, with the sidebar open and ready for us to start building our first mutation.

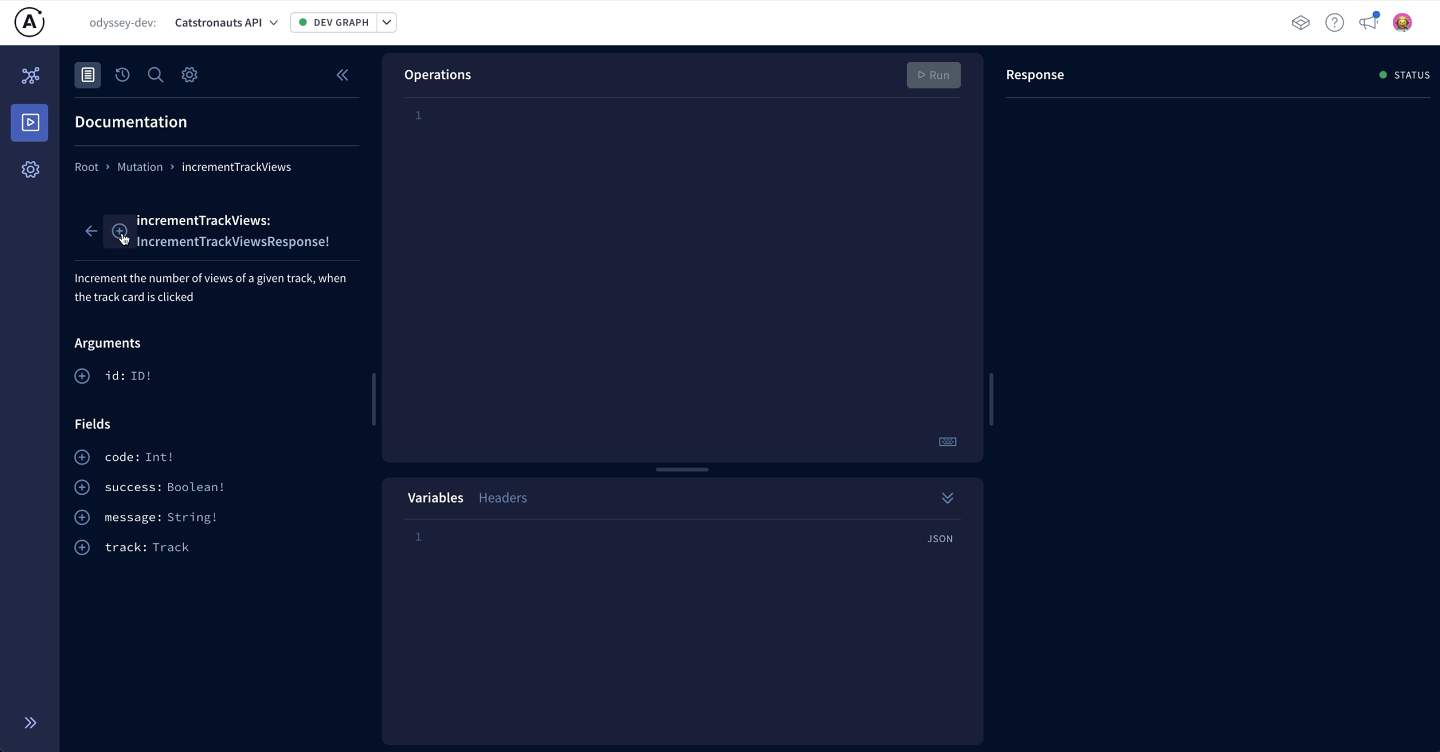

Screenshot of Explorer showing the query started

Click the ⊕ button beside incrementTrackViews to add it to our Operations section. This pre-fills some information for us! The syntax should feel familiar because it's the same syntax we've seen so far with our queries, particularly in Lift-off III where we used arguments and variables.

mutation IncrementTrackViewsMutation($incrementTrackViewsId: ID!) {
incrementTrackViews(id: $incrementTrackViewsId) {

✍️ Building a GraphQL mutation

We start with the mutation keyword, and then the name of the operation (which the Explorer has named IncrementTrackViewsMutation for us). Inside the brackets, we've got a variable denoted by the $ symbol called incrementTrackViewsId, which is of type ID and required.

This variable is set in the Variables section below. Right now it's set to null, so let's change it to the same track ID we've been working with: c_0.

Screenshot showing the Variables panel
{"incrementTrackViewsId": "c_0"}

When writing a GraphQL mutation, which keyword should it start with?

As a best practice when writing a GraphQL mutation, which should come immediately after the keyword from the previous question?

Back to the mutation in the Operations panel!

Inside the curly braces is where we list our mutation entry point: incrementTrackViews. It takes in an id argument, which we set to the variable incrementTrackViewsId, the same one we just set to c_0.

Now inside the second pair of curly braces we can start to add the fields available in our response object. These fields are in the sidebar, making it really easy to build this mutation by clicking on the ⊕ button beside the field.

We want to see the code, the success boolean, the message, and the track object itself.

Inside the track object, we want the id and the numberOfViews. The number of views is what we're updating, so we want to see the newly updated value after the mutation is hopefully successful. The id will be used by our Apollo Client cache, which we'll cover a little later when we get to the front-end implementation.

The mutation operation should look like this:

mutation IncrementTrackViewsMutation($incrementTrackViewsId: ID!) {
incrementTrackViews(id: $incrementTrackViewsId) {
track {

Let's go ahead and run it!

On the right-hand side you can see the fields we expected: code is 200, the success flag is true, the message says it was successful and we get our newly updated track back.

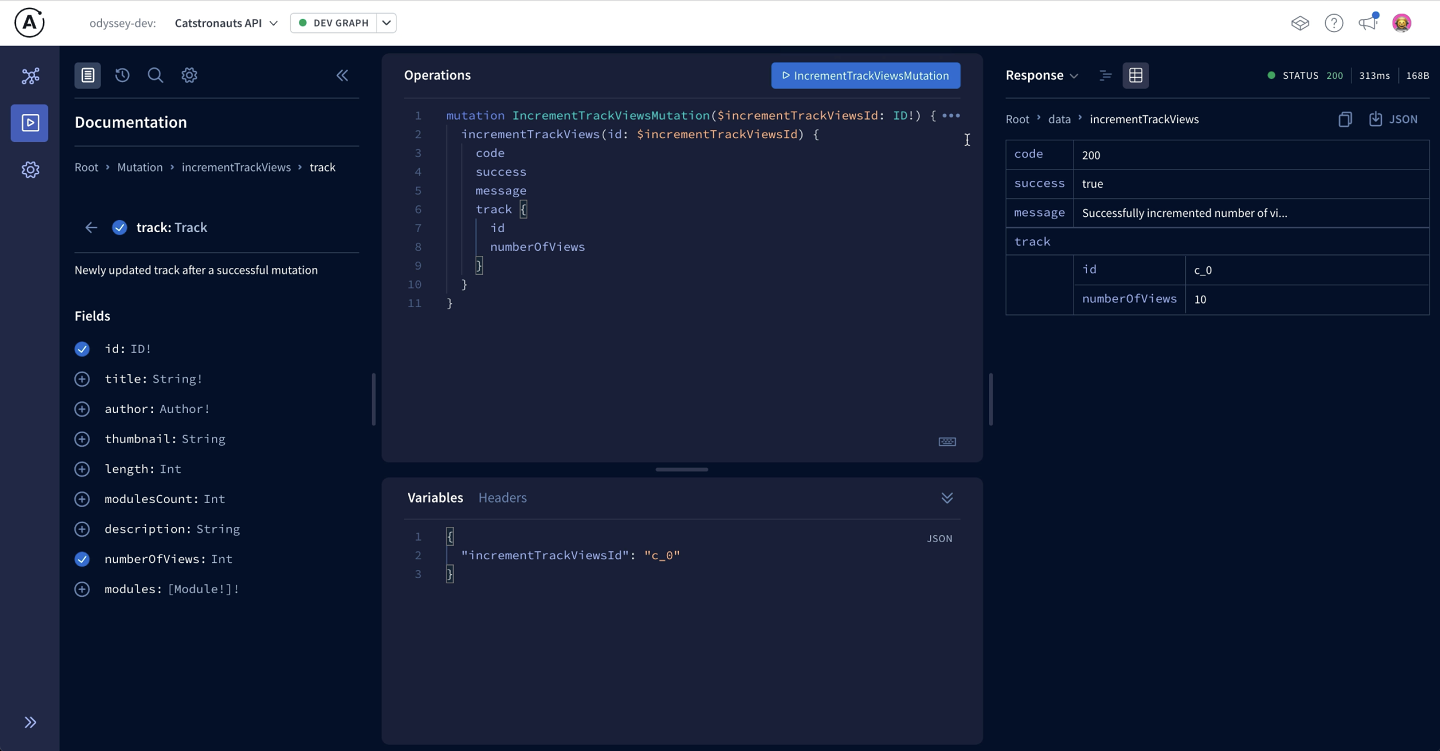

Screenshot of the Explorer showing a successful response

When we run the mutation again and again, we can see that the number of views is going up!

In the successful mutation response, where are the values of code, success and message coming from?

Let's see what happens when we change the incrementTrackViewsId to our silly string "DOESNTEXIST".

{"incrementTrackViewsId": "DOESNTEXIST"}

When we run this mutation, we see the response has code 404, success is false, and the message says Could not find track with specified ID. The track is also set to null with no data available.

Screenshot of the Explorer showing a 404 response

When the mutation fails, where are the values of code and message coming from in the response?

Our mutation looks great and doing what it's supposed to! It's time to jump over to client-land.
