Exercise - Add the subscription resolver

7. Exercise - Add the subscription resolver

10m

Overview

Now it's time to take care of the resolver for our Subscription field. This resolver has a special job, along with a special shape. It's a resolver unlike any other! Once we've taken care of the subscription resolver, we need to make sure our mutation is passing along the right data.

🎯 Goal 1: Implement the resolver function for Subscription.listenForMessageInConversation

🎯 Goal 2: Update the resolver function for Mutation.sendMessage to send the message as the event payload

When your subscription is successfully running, here's what you can expect to see.

https://studio.apollographql.com

A new subscription event reflected in Explorer, along with the mutation response

The `Subscription` resolver

Start by creating the Subscription.ts file in the resolvers folder. Here's some boilerplate you can use.

resolvers/Subscription.ts

import { Resolvers } from "../__generated__/resolvers-types";

export const Subscription: Resolvers = {
  Subscription: {
    listenForMessageInConversation: {
      // TODO
    },
  },
};

Right away, we can jump into resolvers/index.ts and uncomment the Subscription resolver import so that it's included in our resolvers map.

import { Query } from "./Query";
import { Mutation } from "./Mutation";
import { Message } from "./Message";
import { Conversation } from "./Conversation";
import { User } from "./User";
import { Subscription } from "./Subscription";

const resolvers = {
  ...Query,
  ...Mutation,
  ...Conversation,
  ...Message,
  ...User,
  ...Subscription,
};

export default resolvers;

Back in resolvers/Subscription.ts, give the listenForMessageInConversation object a subscribe function.

listenForMessageInConversation: {
  subscribe: () => {}
},

Destructure the third positional argument, contextValue, for its pubsub property.

listenForMessageInConversation: {
  subscribe: (_, __, { pubsub }) => {}
},

Return the results of calling pubsub.asyncIterator, passing in an array with the event string we're listening for: "NEW_MESSAGE_SENT".

listenForMessageInConversation: {
  subscribe: (_, __, { pubsub }) => {
    return pubsub.asyncIterator(["NEW_MESSAGE_SENT"])
  }
},

At this point, you'll probably see an error from TypeScript about the type that the subscribe function returns. This is a known bug. Currently, there are two workarounds. You can either apply // @ts-ignore to the line just above the error, or you can modify the object returned as shown below under Option 2. Please pick whichever option you like best!

Option 1

listenForMessageInConversation: {
  // @ts-ignore
  subscribe: (_, __, { pubsub }) => {
    return pubsub.asyncIterator(["NEW_MESSAGE_SENT"])
  }
},

Option 2

listenForMessageInConversation: {
  subscribe: (_, __, {pubsub}) => {
    return {
      [Symbol.asyncIterator]: () => pubsub.asyncIterator(["NEW_MESSAGE_SENT"])
    }
  }
},

Want to learn more about the AsyncIterator interface? Check out the MDN Web Docs.

Update the `Mutation` resolver

The resolver function for Mutation.sendMessage is publishing the right event, but it's not passing anything along with it. In order for our subscribe function to receive the new data, our mutation needs to pass it along as its payload.

Jump to resolvers/Mutation.ts.

Scroll down to where we call pubsub.publish in the Mutation.sendMessage resolver. Currently, we pass a second argument to this call, an object.

await pubsub.publish("NEW_MESSAGE_SENT", {});

Give the object a key that matches the name of our Subscription field.

await pubsub.publish("NEW_MESSAGE_SENT", {
  listenForMessageInConversation: // TODO
});

As the value, pass in an object containing only the attributes of the message that are present on the Message type. Hint: Check out the attributes returned by the call to the database. Which ones should we pass along? Do all the names match the fields on Message?

await pubsub.publish("NEW_MESSAGE_SENT", {
  listenForMessageInConversation: {
    id,
    text: messageText,
    sentFrom,
    sentTo,
    sentTime,
  },
});

Try it out!

Return to Studio Explorer. Let's build some operations!

Running a subscription

We'll start by subscribing to a particular conversation. Open up the SubscribeToMessagesInConversation operation from your Operation Collection; alternatively, copy it below.

subscription SubscribeToMessagesInConversation(
  $listenForMessageInConversationId: ID!
) {
  listenForMessageInConversation(id: $listenForMessageInConversationId) {
    text
    sentTime
  }
}

And in the Variables panel:

{
  "listenForMessageInConversationId": "xeno-ripley-chat"
}

This should kick off the subscription in the right-hand Response panel (a little window labeled Subscriptions should appear near the bottom).

Next, open up a new tab. Here, we'll trigger a mutation to send a message to that conversation (SendMessageToConversation from your Operation Collection).

mutation SendMessageToConversation($message: NewMessageInput!) {
  sendMessage(message: $message) {
    id
    text
    sentTo {
      id
      name
    }
  }
}

And in the Variables panel:

{
  "message": {
    "text": "I hope there are no hard feelings about before!",
    "conversationId": "xeno-ripley-chat"
  }
}

Note: To participate in conversation "xeno-ripley-chat", you should be authenticated as either user "xeno" or "ripley". (This means that your Authorization header should have the value Bearer xeno or Bearer ripley.)

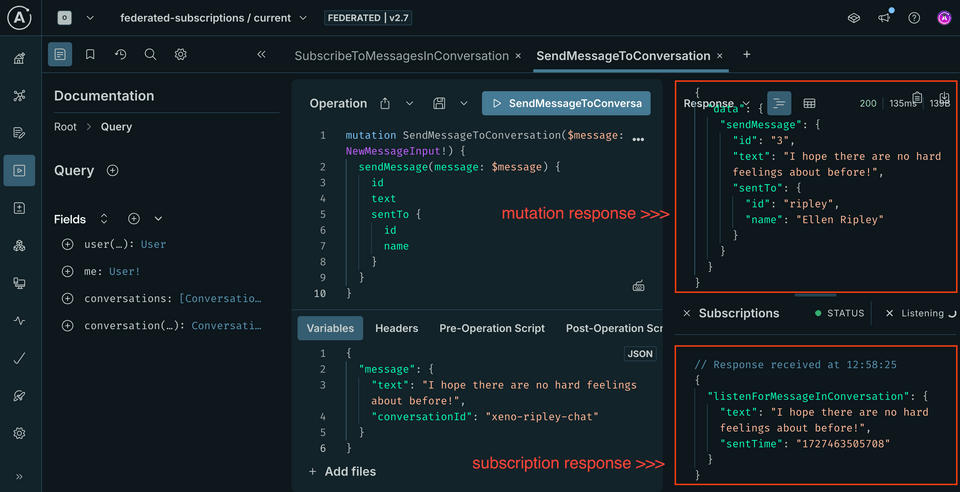

https://studio.apollographql.com

A new subscription event reflected in Explorer, along with the mutation response

Try updating your Authorization header - and sending a response from the other participant in the conversation!
