Authorization with Auth0

Example: Auth0

This guide uses Auth0 as the Identity Provider.

Pre-requisites

1. Create an Apollo account.

2. Clone the repo for the example project.

   sh

   copy

   git clone git@github.com:apollographql/apollo-mcp-server.git

3. Install or update the Rover CLI. You need at least v0.37 or later.

   sh

   copy

   curl -sSL https://rover.apollo.dev/nix/latest | sh

Step 1: Set up the Auth0 identity provider

Create an Auth0 account.

Find your Auth0 domain

1. In your Auth0 dashboard, navigate to Applications -> APIs.

2. Find the Auth0 Management API in the list. Its API Audience looks something like https://dev-123456.us.auth0.com/api/v2/, where dev-123456 is your tenant name.

3. Copy the host part of this URL, for example dev-123456.us.auth0.com. This guide refers to it as <AUTH0 DOMAIN>.

Create the Auth0 API

1. On the same APIs page, click Create API.

2. Give it a friendly name like Apollo MCP Server.

3. For the Identifier field, Auth0 recommends using a URL. MCP clients send this value as the resource parameter, and Auth0 puts it in the aud claim of the access token. For this guide, use http://127.0.0.1:8000/mcp, the URL of your MCP server.

4. Leave the defaults for the rest of the fields and click Create.

5. On the new API's Permissions tab, add a permission named read:users with a description like Read users, then click Add. The MCP server requires this scope in Step 2. Auth0 only includes scopes in an access token when the API defines them.

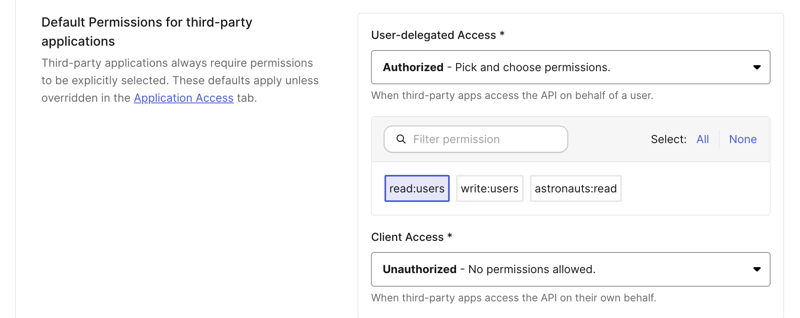

6. On the API's Settings tab, find Default Permissions for third-party applications. Set User-delegated Access to Authorized - Pick and choose permissions., select read:users, and click Save. MCP clients register as third-party applications, and third-party applications can only get the permissions you select here.



Configure the tenant for MCP clients

1. Navigate to Settings -> Advanced. Changes to the toggles on this tab take effect immediately.

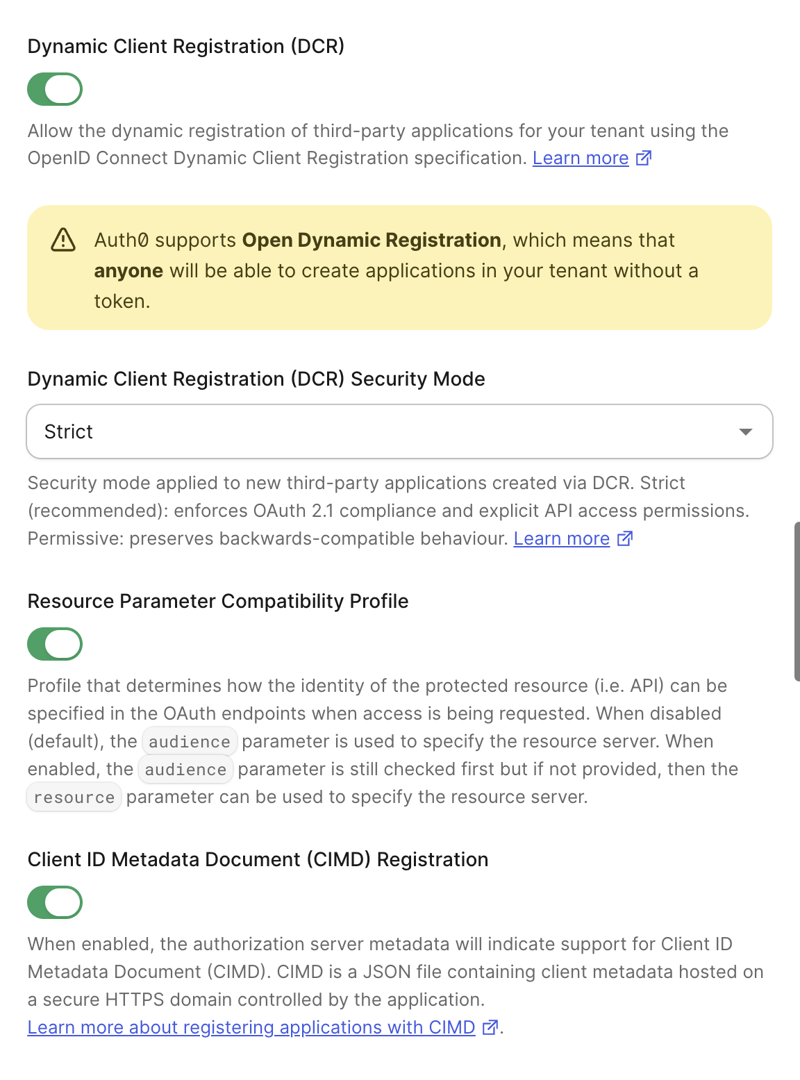

2. Toggle on Resource Parameter Compatibility Profile. MCP clients identify your MCP server with the standard resource parameter, but by default Auth0 only reads its own audience parameter. With this profile, Auth0 uses resource when a request has no audience, so it issues a JWT for your API.

3. Toggle on Client ID Metadata Document (CIMD) Registration. With CIMD, an MCP client uses an HTTPS URL as its client ID, and Auth0 fetches the client's metadata from that URL. The MCP specification recommends CIMD.

4. Toggle on Dynamic Client Registration (DCR) and keep Dynamic Client Registration (DCR) Security Mode set to Strict, which Auth0 recommends. DCR lets a client register itself and get a new client ID.

• You should select the registration mechanism your MCP clients support. MCP Inspector uses DCR unless you configure a CIMD metadata URL for it. mcp-remote supports only DCR. For more information, see the Auth0 documentation on dynamic client registration.

1. Toggle on Enable Application Connections. New applications, including the ones MCP clients register, then get access to your existing connections.

Set up the Auth0 connection

The Auth0 Connection is the method users use to sign in. This guide uses the default Username-Password-Authentication connection.

1. Navigate to Authentication -> Database and select Username-Password-Authentication.

2. Click Try Connection and sign up with an email and a password. You use these credentials to sign in later.

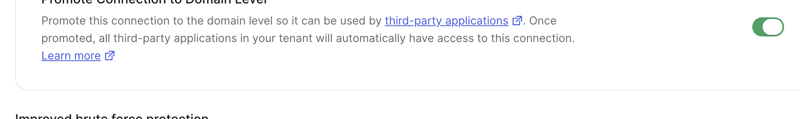

3. On the Settings tab, toggle on Promote Connection to Domain Level and click Save. Applications that MCP clients register are third-party applications, and they can only use domain-level connections.



Your Auth0 setup is now complete. You have an API with a permission, client registration for MCP clients, and a connection for authentication.

Step 2: Configure the MCP server for authorization

Configure the MCP server to use the Auth0 instance for authentication.

1. Open the example repo you cloned earlier.

2. In the examples/TheSpaceDevs directory, open the config.yaml file.

3. Add the following auth configuration under the transport key:

   YAML

   examples/TheSpaceDevs/config.yaml

   copy

   1transport:
   2  type: streamable_http
   3
   4  auth:
   5    servers:
   6      - https://<AUTH0 DOMAIN> # Fill in your Auth0 domain
   7    audiences:
   8      - http://127.0.0.1:8000/mcp # Must match your Auth0 API identifier
   9    resource: http://127.0.0.1:8000/mcp
   10    scopes:
   11      - read:users # Must be a permission defined on your Auth0 API

4. Replace the <AUTH0 DOMAIN> with your own Auth0 domain from earlier.

The MCP server advertises read:users to clients in its WWW-Authenticate challenge and Protected Resource Metadata. Clients request this scope from Auth0, and the user approves it on the consent screen.

Your MCP server is now configured to use Auth0 for authentication.

Step 3: Configure the router for JWT authentication

Configure your GraphOS Router to validate JWTs issued by Auth0. This involves setting up the JWKS endpoint and defining the authorization rules.

Define authorization and authentication rules in the router

1. In the examples/TheSpaceDevs directory, create a new file called router.yaml.

2. Paste the following configuration, replacing <AUTH0 DOMAIN> with your Auth0 domain:

   YAML

   examples/TheSpaceDevs/router.yaml

   copy

   1authorization:
   2  require_authentication: true # Enforces authentication on all requests
   3authentication:
   4  router:
   5    jwt:
   6      jwks:
   7        - url: https://<AUTH0 DOMAIN>/.well-known/jwks.json
   8          audiences:
   9            - http://127.0.0.1:8000/mcp # Only accept tokens issued for this API
   10homepage:
   11  enabled: false
   12sandbox:
   13  enabled: true
   14supergraph:
   15  introspection: true

   With this configuration, the router requires authentication for all requests. If a request doesn't include an Authorization token, the router returns an UNAUTHENTICATED error.

Retrieve your GraphOS license credentials for auth

You need a graph's credentials and a valid GraphOS plan to use the router's authentication features.

1. Navigate to GraphOS Studio and log in.

2. Click Add graph and Connect an existing graph.

3. Give it a name and click Next.

4. In the next modal, find the command that looks something like this:

   sh

   copy

   APOLLO_KEY=<YOUR_APOLLO_KEY> \
   rover subgraph publish <YOUR_APOLLO_GRAPH_REF> \
   --schema ./products-schema.graphql \
   --name your-subgraph-name \
   --routing-url http://products.prod.svc.cluster.local:4001/graphql

   Note: You don't need to run this command.

5. Retrieve the values for YOUR_APOLLO_KEY and YOUR_APOLLO_GRAPH_REF from the modal and click Finish later.

Run the MCP server and router

1. Back in your terminal, in the root of the project directory, replace and run the following command to start the MCP Server and the router together:

   sh

   copy

   1APOLLO_GRAPH_REF=<YOUR_APOLLO_GRAPH_REF> APOLLO_KEY=<YOUR_APOLLO_KEY> \
   2rover dev --supergraph-config ./examples/TheSpaceDevs/supergraph.yaml \
   3--router-config ./examples/TheSpaceDevs/router.yaml \
   4--mcp ./examples/TheSpaceDevs/config.yaml

2. Test the router by navigating to http://localhost:4000 in your browser. You should see the Explorer, where you can run GraphQL queries against the router.

3. Remember, the router is configured to require authentication on all requests. Any operations without a valid Authorization token returns an UNAUTHENTICATED error. Run the operation:

   GraphQL

   copy

   1query GetAstronautsCurrentlyInSpace {
   2  astronauts(filters: { inSpace: true, search: "" }) {
   3    results {
   4      id
   5      name
   6      timeInSpace
   7      lastFlight
   8    }
   9  }
   10}

4. You should see an UNAUTHENTICATED error, which means the router is correctly enforcing authentication.

Step 4: Make requests with MCP Inspector

1. In a new terminal window, run the MCP Inspector:

   sh

   copy

   1npx @modelcontextprotocol/inspector

   The browser should open automatically with a proxy auth token.

2. In the MCP Inspector, select Streamable HTTP as the Transport Type and enter http://127.0.0.1:8000/mcp as the URL.

3. Click Connect. This triggers the OAuth flow, and you are redirected to the Auth0 login page.

4. Log in with the credentials you set up in the Auth0 connection and allow MCP Inspector access.

5. After you connect, the browser redirects back to MCP Inspector.

6. Click List Tools to see the available tools.

7. Select the GetAstronautsCurrentlyInSpace tool listed and click Run Tool.

8. You should see the results of the query, which means the authentication is working correctly.

You can select the Auth tab in MCP Inspector to see the details of the authenticated user and the scopes granted.

Step 5: Make requests with an MCP client (Goose)

We'll use Goose as our MCP Client. Goose allows you to choose between many different LLMs and provides some built-in functionality for connecting to MCP servers, called Extensions.

Install the Goose CLI, following the instructions for your operating system. Set up the LLM provider of your choice with goose configure --> Configure Providers. Each provider has its own set of instructions, rate limiting and pricing.

Then, continue with the following steps:

1. In your terminal, run goose configure.

2. Select or enter the following answers at the prompts:

1. To start Goose, type goose. This will open a browser window and send you through the auth flow.

2. Log in to your Auth0 instance and authorize your MCP server to gain access to your tools.

3. In Goose, ask "What astronauts are in space right now?". This question is similar to the GetAstronautsCurrentlyInSpace operation from earlier, which fails as unauthenticated without the proper token.

4. Goose will select the GetAstronautsCurrentlyInSpace tool and respond with information about the astronauts found in TheSpaceDevs.

Troubleshooting

Common issues

MCP server won't start

• Error: "Port 8000 is already in use"

  • Solution: Kill any existing processes using port 8000 or specify a different port with the transport.port option or APOLLO_MCP_TRANSPORT__PORT env variable

• Error: "Failed to load supergraph configuration"

  • Solution: Verify you're running the command from the repo root directory

  • Solution: Check that the path to supergraph.yaml is correct

• Error: "License violation"

  • Solution: Ensure that the rover dev command includes valid APOLLO_KEY and APOLLO_GRAPH_REF values and that your plan supports authentication features.

• Error: "What URL is your subgraph running on?" question in terminal

  • Solution: Verify that the file path for your config files is correct. You should run the rover dev command from the root of the example project directory and the file paths should be relative to that root.

MCP Server rejects the token

• Issue: The OAuth flow completes, but requests to the MCP server fail with 401 Unauthorized

  • Solution: Check that Resource Parameter Compatibility Profile is on under Settings -> Advanced. Without it, Auth0 ignores the resource parameter and doesn't issue a JWT for your API.

  • Solution: Check that the Auth0 API identifier, audiences, and resource use exactly the same URL, including the scheme, host, port, and path. For example, localhost and 127.0.0.1 don't match.

• Issue: Requests fail with 403 Forbidden and an insufficient_scope error

  • Solution: Check that every scope in the scopes configuration is a permission on your Auth0 API's Permissions tab. Auth0 leaves scopes that the API doesn't define out of the access token.

MCP Inspector connection issues

• Error: "Failed to connect to server"

  • Solution: Ensure the MCP server is running (check terminal output)

  • Solution: Verify you're using the correct URL (http://127.0.0.1:8000/mcp)

  • Solution: Check if your firewall is blocking the connection

Client registration or sign-in fails

• Issue: MCP Inspector or Goose fails at the client registration step

  • Solution: In your Auth0 dashboard, go to Settings -> Advanced and check that Dynamic Client Registration (DCR) is on. MCP Inspector (without a CIMD metadata URL) and mcp-remote fail if only Client ID Metadata Document (CIMD) Registration is on.

• Issue: Client registration fails with 403 and "errorCode":"too_many_entities"

  • Solution: Your tenant reached its application limit. Every DCR registration creates a new third-party application, so repeated testing fills the tenant quickly. Delete the applications you no longer need under Applications -> Applications.

• Issue: The Auth0 error page says Client "tpc_..." is not authorized to access resource server "http://127.0.0.1:8000/mcp"

  • Solution: On your Auth0 API's Settings tab, check that Default Permissions for third-party applications authorizes User-delegated Access for read:users, and that you saved the change.

• Issue: Client registration succeeds, but you can't sign in with your username and password

  • Solution: Check that Promote Connection to Domain Level is on for the Username-Password-Authentication connection.

Infinite loop during OAuth flow

• Issue: After logging in to Auth0, MCP Inspector keeps refreshing and doesn't complete the OAuth flow

  • Solution: In MCP Inspector, open the Authentication panel in the sidebar. Clear out any values in the Header Name and Bearer Token fields. Then try connecting again.

  • Solution: In MCP Inspector, select Clear OAuth State and try connecting again.

Getting help

If you're still having issues:

1. Check the Apollo MCP Server GitHub issues.

2. Join the Apollo Community MCP Server Category.

3. Contact your Apollo representative for direct support.
