Overview

Project all set up? Let's get going!

In this lesson, we will:

• Explore the project's schema
• Use the Connectors Debugger in Sandbox to inspect our Connector requests
• Identify how the N+1 problem appears in our project

The schema

Let's take a closer look at the current state of our Airlock schema in listings.graphql.

We have one entry point into our graph: Query.featuredListings, which returns a list of Listing types. The Connector populates that data by making a request to the GET /featured-listings endpoint, and maps the response for a few fields (id, title, numOfBeds, and costPerNight).

The Listing type is an entity with its own Connector, which makes a request to the GET /listings/:id endpoint. It maps the response for all the fields in the type, more than what the Query.featuredListings Connector by itself can provide.

Let's explore this schema with Sandbox and start sending queries!

N+1 requests

Open up http://localhost:4000 in the browser, where the local Sandbox is running our graph.

Let's build a query that asks for just a few fields:

When we run this query, we'll get some data back! Let's take a peek behind the scenes at where this data is coming from.

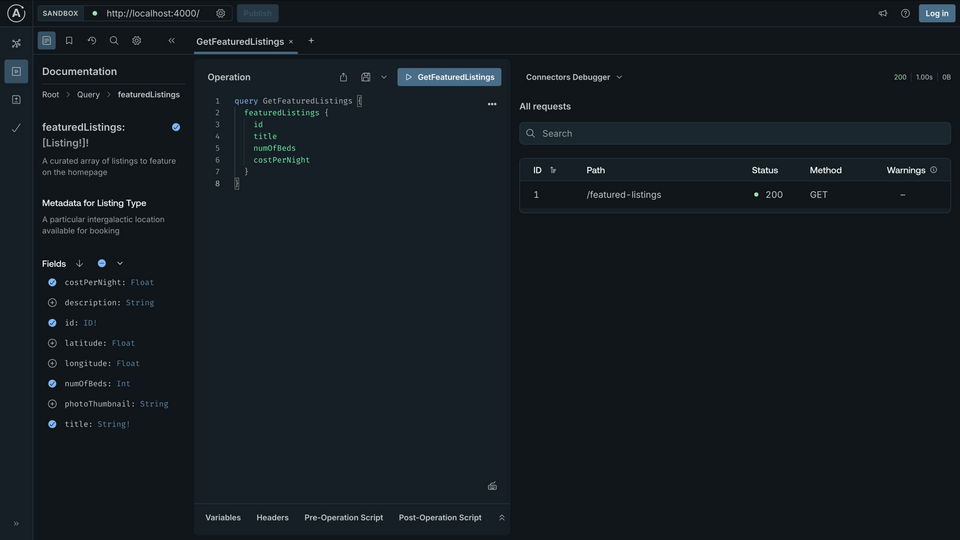

Navigate to the Connectors Debugger by hitting the arrow beside Response.

From here, we can see we have one request to GET /featured-listings. Great! That's exactly what the schema told us would happen.

But our UI mockup needs more than just those four fields. We need the description, photoThumbnail, latitude, and longitude fields, too. Let's add those to our query and see what happens.

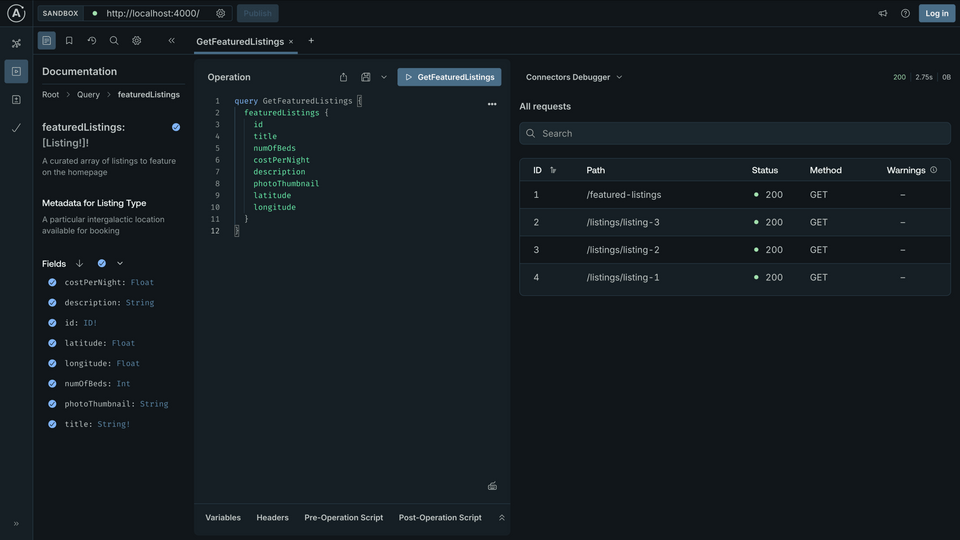

We'll run it again… and the Connectors Debugger shows us more requests!

This time, we've got three more requests: one for each listing object returned by the Query.featuredListings Connector. Because that Connector can't fulfill all of the fields defined in the query, the router goes to the Listing entity Connector for help. The Listing entity Connector takes care of making a request to GET /listings/:id, for each ID, and returns the rest of the fields.

In this case, those three requests represent the N in our N+1 problem. This doesn't look too bad, but we want to get ahead of any potential performance issues before it gets worse! If our featured listings increase without warning, those three additional requests will also grow accordingly.

Practice

Key takeaways

• A Connector for an entity type can retrieve all the fields for that type.

Up next

Now that we've seen the N+1 problem in action, it's time to do something about it. In the next lesson, you'll dive into batch endpoints and how to define them in a Connector.
