Overview

Let's continue building our accounts subgraph! We have our list of types and fields that we need to migrate from the monolith subgraph. But how do we do this safely?

In this lesson, we will:

• Learn about the @override directive
• Learn about the progressive @override approach for incremental migration
• Start to migrate our accounts subgraph types

The @override directive

To migrate fields safely from one subgraph to another, we use the @override directive.

We can apply @override to fields of an entity and fields of root operation types (such as Query and Mutation). It tells the router that a particular field is now resolved by the subgraph that applies @override, instead of another subgraph where the field is also defined.

The @override directive takes in an argument called from, which will be the name of the subgraph that originally defined the field.

Let's take the Query.user field as an example, which currently lives in the monolith subgraph. We want to move it over to the accounts subgraph. In the accounts schema, we would add the directive just after the return type of the field:

The monolith subgraph schema can stay the same, but the router won't call on it anymore when the user field is requested.

Incremental migration with progressive @override

In production environments, we probably want to take it slower, monitoring performance and issues as we make these changes. For example, we might want to send only 10% or 25% of all operations towards the accounts subgraph. If all goes well and there are no issues, we can bump that number up incrementally, until we get to the full 100% migration.

To do this, we can add another argument to the @override directive: label. This argument takes in a string value starting with percent followed by a number in parentheses. The number represents the percentage of traffic for the field that's resolved by this subgraph. The remaining percentage is resolved by the other (from) subgraph.

Let's examine the Query.user field again. If we wanted the accounts subgraph to handle only 25% of traffic, we would annotate it like so:

The monolith subgraph schema still stays the same, but now the router will route its requests to the monolith subgraph 75% of the time, and the accounts subgraph 25% of the time for the Query.user field.

Let's migrate!

Here's our list of types and fields for the accounts subgraph again. We'll take them one by one, doing the first two together types together. Then, you'll get a chance to do the rest on your own!

• User interface with id, name, profilePicture
• Host type with id, name, profilePicture and profileDescription
• Guest type with id, name, profilePicture
• Query.user
• Query.me
• Mutation.updateProfile
• The types used by the updateProfile mutation: UpdateProfileInput, UpdateProfileResponse and MutationResponse

The User interface

Let's start with the User interface. We can find its definition in the monolith/schema.graphql file. Copy and paste it into the accounts subgraph schema.

What about in the monolith subgraph? Well, we still need to keep the User interface defined there. We reference it as a return type for the Review.author field, and we also implement the interface for the Host and Guest types.

However, we don't need to keep all the extra fields that are the responsibility of the accounts subgraph! We can remove both name and profilePicture.

We do still need to keep the id field, because that's the bare minimum we need to identify a specific instance of a user (like a stub!)

Interface definitions can be shared between subgraphs by default, and those definitions can differ in each subgraph. This is how we can remove the name and profilePicture fields from the User interface definition in the monolith subgraph!

Now that we've got our User interface squared away in both subgraphs, let's move on to the implementing types, Host and Guest.

✏️ The Host entity

Let's first take a look at the Host type and its fields. For each field, we've added a comment indicating which subgraph should be responsible for that field, based on the separation of concerns principle.

Using the plan above, we'll need to do the following:

• Migrate three fields (name, profilePicture and profileDescription) over to the accounts subgraph, which will be responsible for contributing those fields to the Host entity.
• The monolith subgraph will keep contributing the overallRating field (eventually, the reviews subgraph will, but let's take it one step at a time!).

Let's get to it!

1. From the monolith subgraph schema, let's copy the Host type, its key field and the three fields it'll be responsible for (name, profilePicture and profileDescription) over to the accounts subgraph schema.

   subgraph-accounts/schema.graphql

   type Host implements User @key(fields: "id") {
     id: ID!
     "The user's first and last name"
     name: String!
     "The user's profile photo URL"
     profilePicture: String!
     "The host's profile bio description, will be shown in the listing"
     profileDescription: String!
   }

   Copy

2. Let's start with the name field and apply the @override directive. We'll include the from argument, which we'll set to the monolith subgraph.

   name: String! @override(from: "monolith")

   Copy

3. We'll also need to add the directive to the import at the top.

   extend schema
     @link(
       url: "https://specs.apollo.dev/federation/v2.7"
       import: ["@key", "@shareable", "@inaccessible", "@override"]
     )

   Copy

4. When we save our changes, rover dev will automatically detect the change and trigger a composition... uh-oh! We've got 2 build errors:

   error[E029]: Encountered 2 build errors while trying to build a supergraph.

   Caused by:
       INVALID_FIELD_SHARING: Non-shareable field "Host.profilePicture" is resolved from multiple subgraphs: it is resolved from subgraphs "accounts" and "monolith" and defined as non-shareable in all of them
       INVALID_FIELD_SHARING: Non-shareable field "Host.profileDescription" is resolved from multiple subgraphs: it is resolved from subgraphs "accounts" and "monolith" and defined as non-shareable in all of them

           The subgraph schemas you provided are incompatible with each other. See https://www.apollographql.com/docs/federation/errors/ for more information on resolving build errors.

   Copy

   The INVALID_FIELD_SHARING error points to two fields: Host.profilePicture and Host.profileDescription. Reading the description explains the source of the error: we're defining a field twice, in separate subgraphs, and it's not a @shareable field. Marking it @shareable in both subgraphs would fix the error, but we're not interested in making it shareable! We know that these fields belong to the accounts subgraph, not the monolith subgraph; that's why we're migrating after all.

5. Let's finish up applying the @override directive to both fields.

   profilePicture: String! @override(from: "monolith")
   profileDescription: String! @override(from: "monolith")

   Copy

6. When we save our changes and rover dev re-composes, we'll see a successful composition with no errors. Awesome, that's it for the Host entity!

Checking our changes

Before we keep going, let's head over to the local rover dev router running at http://localhost:4000.

1. Let's build a query to get a specific host's overallRating.

   query User($userId: ID!) {
     user(id: $userId) {
       ... on Host {
         overallRating
       }
     }
   }

   Copy

   We'll set the userId variable to user-1, the ID of a host user.

   {
     "userId": "user-1"
   }

   Copy

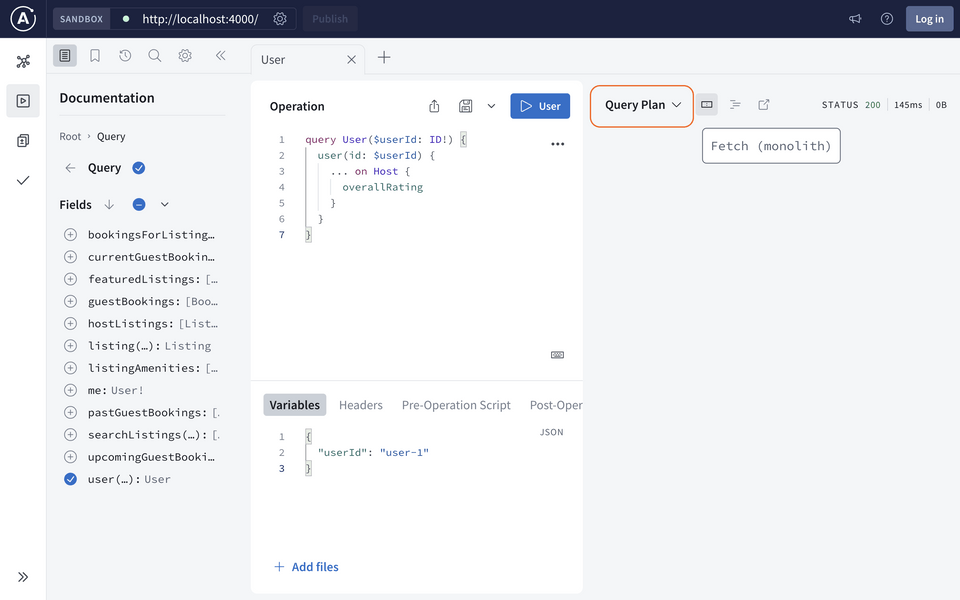

2. We can run the query and get a response back, but let's take a peek at the query plan. Remember, the query plan is the set of steps the router takes to resolve a GraphQL operation. Click the arrow beside "Response" and select Query Plan. We'll look at it as a chart.

   http://localhost:4000



   A host's overallRating field belongs in the monolith subgraph, and we see from the query plan that the router is fetching from that subgraph only.

3. Let's add the name field to the operation now, a field we recently migrated over to accounts.

   query User($userId: ID!) {
     user(id: $userId) {
       ... on Host {
         overallRating
         name
       }
     }
   }

   Copy

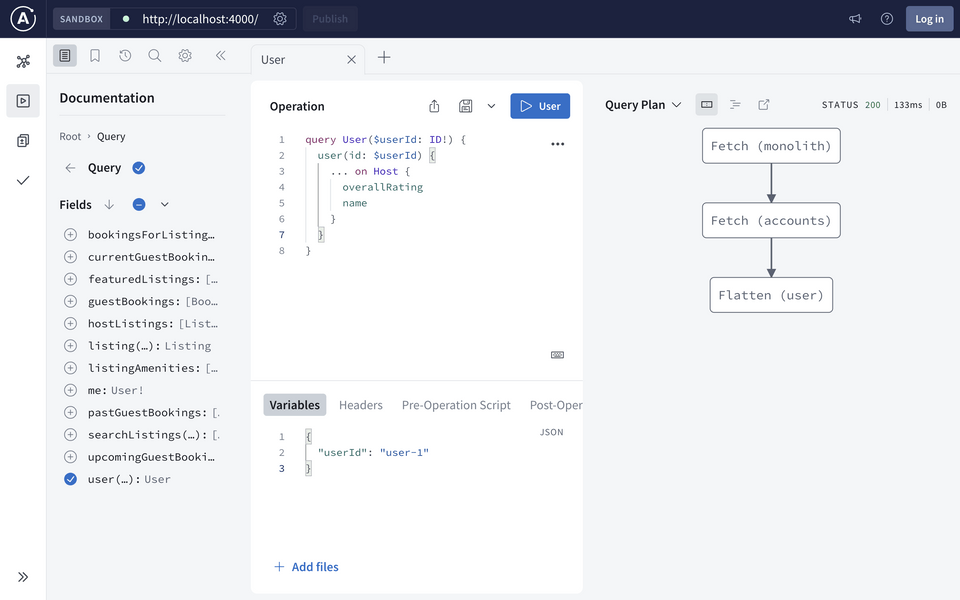

4. Running the query again, we get a new plan! This time, we have an additional fetch to the accounts subgraph. This means our migration is working! 🎉

   http://localhost:4000

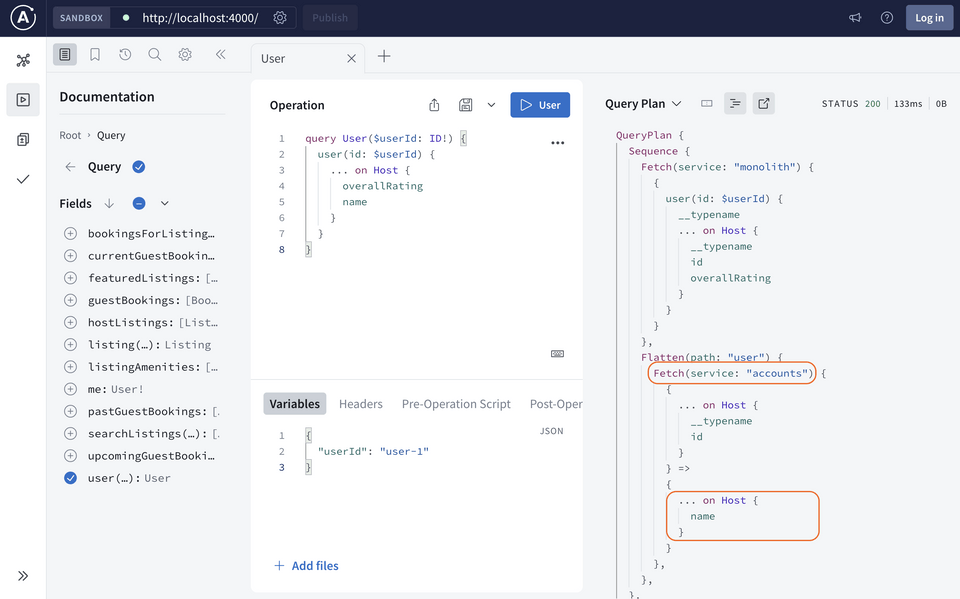

5. We can also view the query plan as text to validate that the name field is coming from the accounts subgraph.

   http://localhost:4000



Awesome, let's keep going!

✏️ The Guest entity

Let's use the same process for the Guest entity. In the monolith/schema.graphql file, we'll look at the Guest type and label each field with which subgraph should be responsible for it.

Using the plan above, we'll need to do the following:

• Migrate two fields (name and profilePicture) over to the accounts subgraph, which will be responsible for contributing those fields to the Guest entity.
• The monolith subgraph will keep contributing the funds field (eventually, the payments subgraph will, but let's take it one step at a time!).

Go ahead and make those changes. By the end of those steps, our accounts schema for the Guest entity should look like this:

The rest of the types

Let's review the list again:

• ✅ User interface with id, name, profilePicture
• ✅ Host type with id, name, profilePicture and profileDescription
• ✅ Guest type with id, name, profilePicture
• Query.user
• Query.me
• Mutation.updateProfile
• The types used by the updateProfile mutation: UpdateProfileInput, UpdateProfileResponse and MutationResponse

Now it's your turn to implement the rest of the list. You've got this! Compare your code with ours after you're done.

Don't forget to clean up the Query type: we don't need that stub _todo field anymore.

Let's save our changes and make sure there are no error messages in the rover dev process; this ensures that composition was successful!

Implementing progressive override

By using the @override directive, we flipped the switch for the Host and Guest fields to be resolved by the accounts subgraph. All GraphQL operations requesting these fields will be taken care of by the accounts subgraph.

In tutorial land, we're sticking with the basic override, but feel free to expand the section below for instructions on how to implement progressive override.

Practice

Key takeaways

• The @override directive can be applied to fields of an entity and fields of root operation types to indicate which subgraph should have the responsibility of resolving it.
• The @override directive accepts an argument called from, which specifies the name of the subgraph that originally defined the field (and which is being overridden).
• With progressive override, we can provide the @override directive with an additional argument, label. This specifies the percentage of time the router should call upon the subgraph to resolve the field.

Up next

Our schema looks great, but we don't have any resolvers to actually make it work! Let's tackle that next.
