3. Exercise: Explore Explorer
1m

Exercise: Exploring Poetic Plates

🎯 Goal: Get to know the API and GraphOS Explorer! Complete all the tasks below.

For this exercise, let's take on the role of an API consumer, trying to build a frontend for the page below. What might your GraphQL query look like?

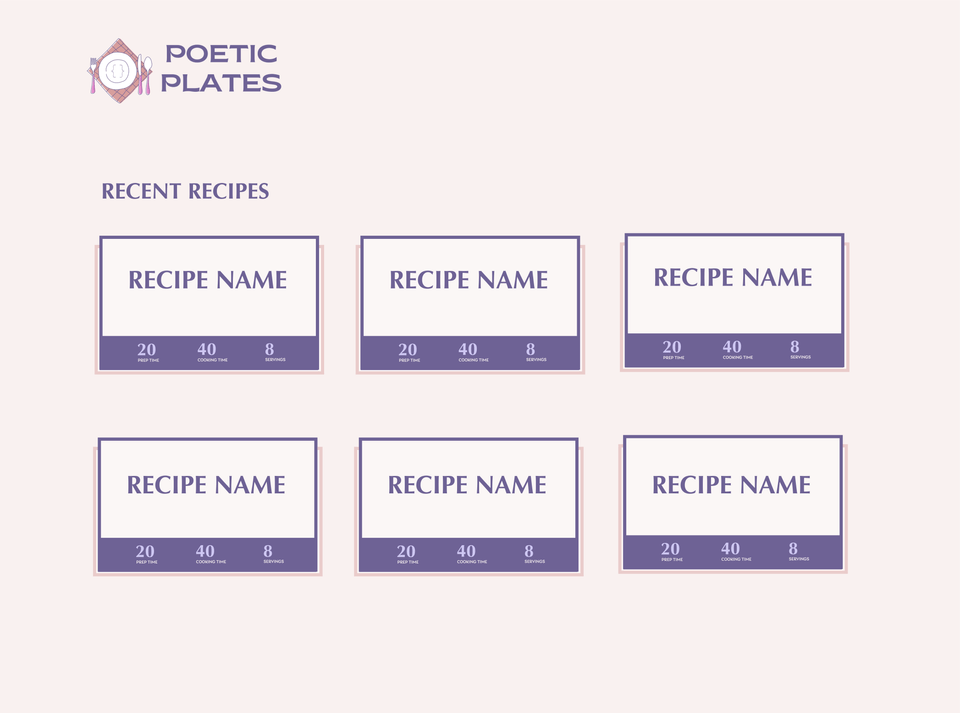

A mockup from the Poetic Plates app, showing a number of recipe boxes under a header titled "Recent Recipes."

GraphQL queries

Build your query, and try it out in the Sandbox to make sure you get data back.

query GetRecentlyAddedRecipes {
  recentlyAddedRecipes {
    prepTime
    name
    cookingTime
    servings
  }
}

Let's explore another of our Query type's entrypoints - querying for a random recipe!

Open a new operation tab in Sandbox and add the randomRecipe field. Add a few more fields, and submit the operation!

Example: Querying for a random recipe
query GetRandomRecipe {
  randomRecipe {
    prepTime
    name
    cookingTime
    servings
    ingredients {
      name
    }
  }
}

Hmm, notice anything different? 🤔 You might have missed it—if you're curious, try running both of these operations again. We'll find that one of these queries takes a lot longer than the other to resolve. Keep this in mind... we'll circle back shortly!

Explorer features

Explorer helps accelerate development for API consumers. Take a few minutes to discover these features!

Features

Solutions

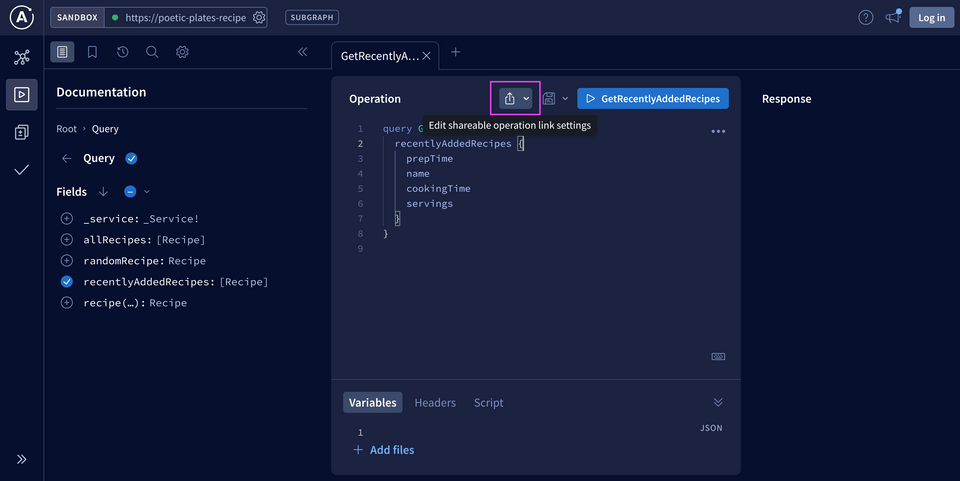

A screenshot of the Sandbox environment, with the cursor hovering over a share icon with the text 'Edit shareable operation link settings.'

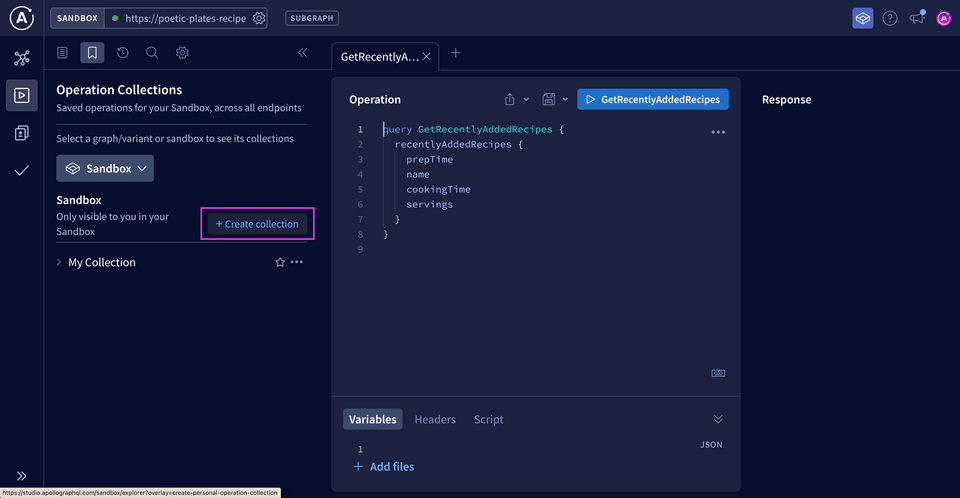

A screenshot of the Sandbox environment, with the Operation Collections tab opened on the left. A button that reads 'Create collection' is highlighted.

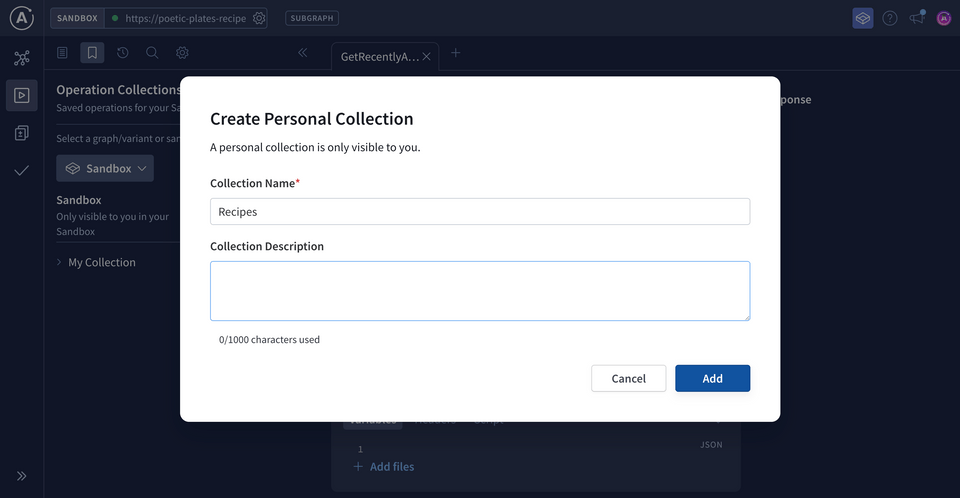

A screenshot of a modal in Sandbox, with inputs to create a new Operation Collection. The Collection Name field is filled in with 'Recipes'.

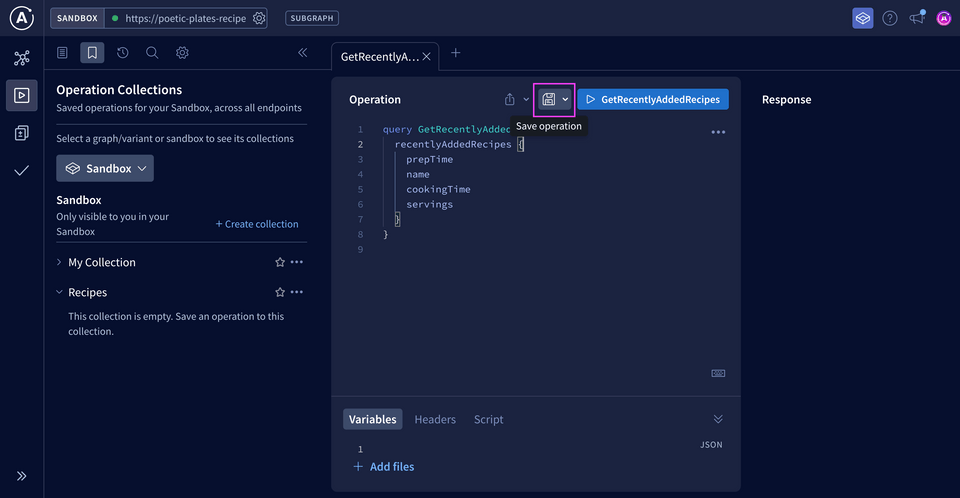

A screenshot of the Sandbox environment, with the cursor hovering over a save icon with the text 'Save Operation' appearing.

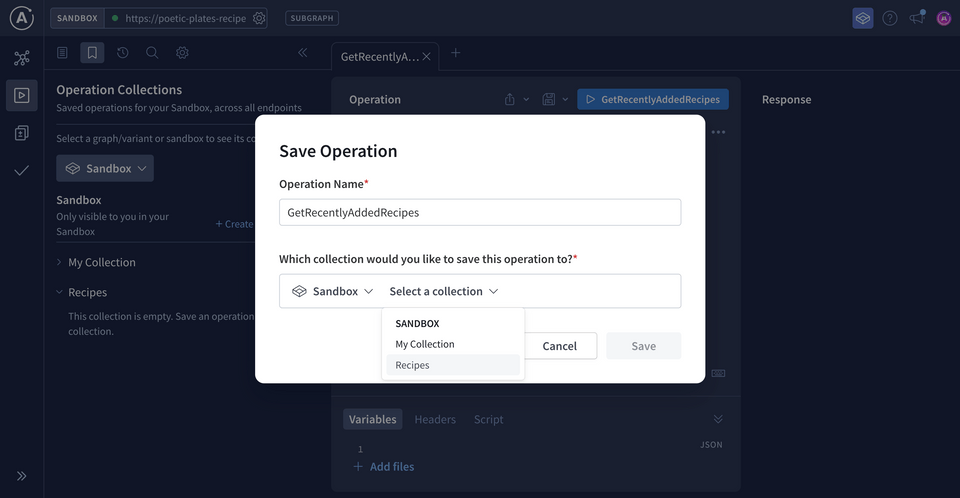

A screenshot of a modal in Sandbox, with inputs to save the selected operation to a particular collection. The collection dropdown is expanded to reveal the newly created Recipes collection.

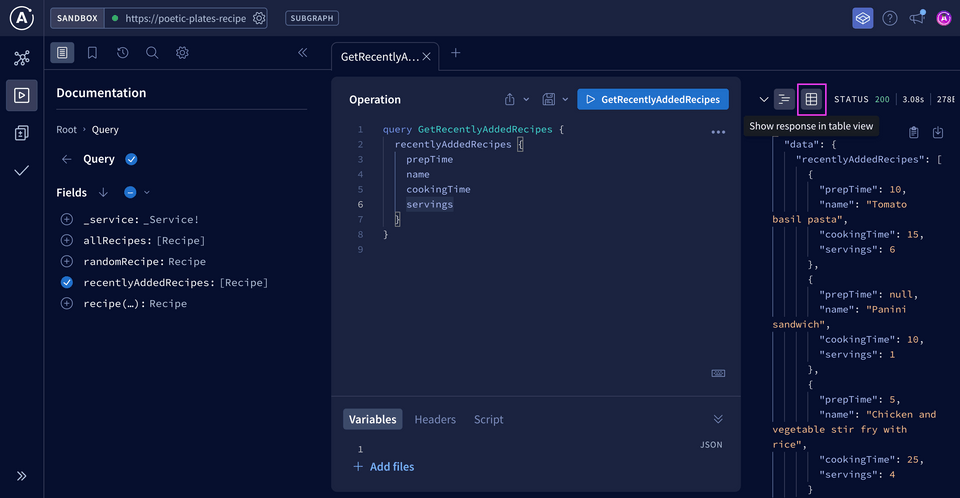

A screenshot of the Sandbox environment, with the cursor hovering over a table in the Response panel. The text beside it reads 'Show response in table view'.

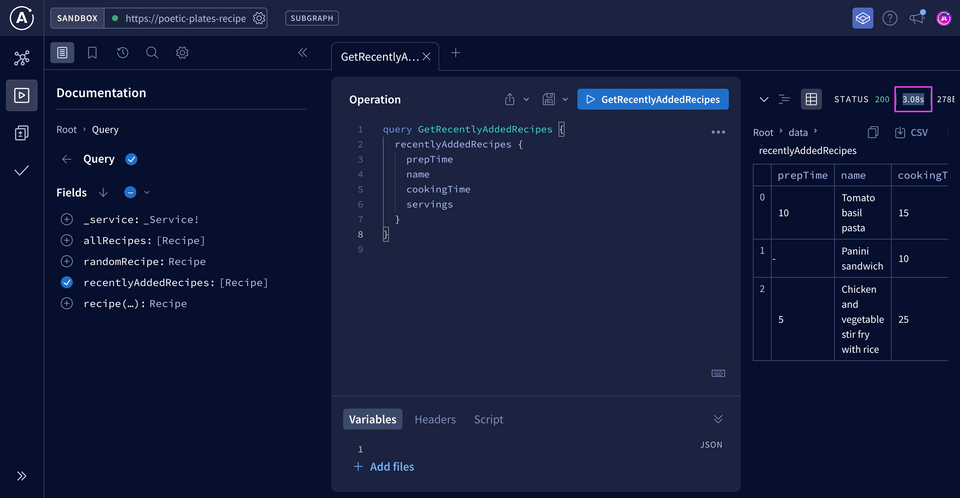

A screenshot of the Sandbox environment, showing the number 3.08s highlighted inside of a pink rectangle above the Response panel.
