Authorization with WorkOS

Example: WorkOS

This guide uses WorkOS AuthKit as the Identity Provider.

Pre-requisites

1. Create an Apollo account.

2. Clone the repo for the example project.

   sh

   copy

   git clone git@github.com:apollographql/apollo-mcp-server.git

3. Install or update the Rover CLI. You need at least v0.37 or later.

   sh

   copy

   curl -sSL https://rover.apollo.dev/nix/latest | sh

Step 1: Set up the WorkOS identity provider

Create a WorkOS account. This guide uses the default Staging environment.

Find your AuthKit domain

AuthKit is the WorkOS authorization server that MCP clients sign in with.

1. In the WorkOS Dashboard, navigate to Domains.

2. Under AuthKit, copy the domain. In a staging environment, it looks something like necessary-marsh-61-staging.authkit.app. This guide refers to it as <AUTHKIT DOMAIN>.

3. To check the domain, open https://<AUTHKIT DOMAIN>/.well-known/oauth-authorization-server in your browser. You should see a JSON document whose issuer value is https://<AUTHKIT DOMAIN>.

Enable client registration

MCP clients must identify themselves to AuthKit before they start the OAuth flow. WorkOS supports two registration methods:

• Client ID Metadata Document (CIMD): The client uses an HTTPS URL as its client ID. AuthKit fetches the client's metadata from that URL, so the client doesn't need to register first. The MCP specification recommends CIMD.

• Dynamic Client Registration (DCR): The client sends its metadata to AuthKit's registration endpoint and gets a new client ID. The MCP specification keeps DCR for backward compatibility with clients that don't support CIMD yet.

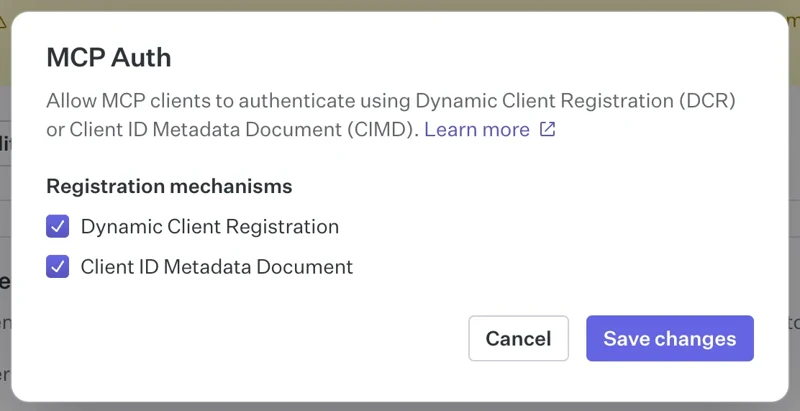

1. In the WorkOS Dashboard, navigate to Connect -> Configuration.

2. In the MCP Auth section, click Manage.

3. Under Registration mechanisms, select Client ID Metadata Document and Dynamic Client Registration.

• You should select the registration mechanism your MCP clients support. MCP Inspector uses DCR unless you configure a CIMD metadata URL for it. mcp-remote supports only DCR.

1. Click Save changes.

Add the MCP server as a resource indicator

A resource indicator tells AuthKit which URL a token is for. AuthKit puts this URL in the aud claim of the access token. The MCP server checks this claim against its audiences configuration.

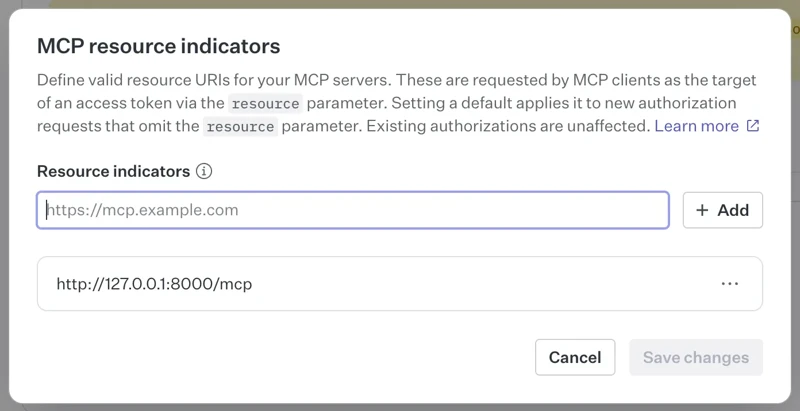

1. On the same Configuration page, in the MCP resource indicators section, click Edit MCP resources.

2. Enter http://127.0.0.1:8000/mcp and click Add. This value must match the resource value in your MCP server configuration later.

3. Optional: Open the ... menu next to the resource indicator and select Set as default. AuthKit then uses this audience for clients that don't send a resource parameter.

4. Click Save changes.

Create a test user

AuthKit hosts the sign-in page for your users. This guide uses email and password sign-in.

1. In the WorkOS Dashboard, navigate to Authentication -> Methods. Check that Email + Password is enabled.

2. Navigate to Users and click Create user.

3. Enter an email address and a password, then click Create user. You use these credentials to sign in later.

Your WorkOS setup is now complete. You have an AuthKit domain, a resource indicator for the MCP server, and a user to sign in with.

Step 2: Configure the MCP server for authorization

Configure the MCP server to use AuthKit for authentication.

1. Open the example repo you cloned earlier.

2. In the examples/TheSpaceDevs directory, open the config.yaml file.

3. Add the following auth configuration under the transport key:

   YAML

   examples/TheSpaceDevs/config.yaml

   copy

   1transport:
   2  type: streamable_http
   3
   4  auth:
   5    servers:
   6      - https://<AUTHKIT DOMAIN> # Fill in your AuthKit domain
   7    issuers:
   8      - https://<AUTHKIT DOMAIN> # Fill in your AuthKit domain
   9    audiences:
   10      - http://127.0.0.1:8000/mcp # Must match your resource indicator
   11    resource: http://127.0.0.1:8000/mcp

4. Replace both <AUTHKIT DOMAIN> placeholders with your own AuthKit domain from earlier.

Your MCP server is now configured to use WorkOS for authentication.

Step 3: Configure the router for JWT authentication

Configure your GraphOS Router to validate JWTs issued by AuthKit. This involves setting up the JWKS endpoint and defining the authorization rules.

Define authorization and authentication rules in the router

1. In the examples/TheSpaceDevs directory, create a new file called router.yaml.

2. Paste the following configuration, replacing <AUTHKIT DOMAIN> with your AuthKit domain:

   YAML

   examples/TheSpaceDevs/router.yaml

   copy

   1authorization:
   2  require_authentication: true # Enforces authentication on all requests
   3authentication:
   4  router:
   5    jwt:
   6      jwks:
   7        - url: https://<AUTHKIT DOMAIN>/oauth2/jwks
   8          audiences:
   9            - http://127.0.0.1:8000/mcp # Only accept tokens issued for this resource
   10homepage:
   11  enabled: false
   12sandbox:
   13  enabled: true
   14supergraph:
   15  introspection: true

   With this configuration, the router requires authentication for all requests. If a request doesn't include an Authorization token, the router returns an UNAUTHENTICATED error.

Retrieve your GraphOS license credentials for auth

You need a graph's credentials and a valid GraphOS plan to use the router's authentication features.

1. Navigate to GraphOS Studio and log in.

2. Click Add graph and Connect an existing graph.

3. Give it a name and click Next.

4. In the next modal, find the command that looks something like this:

   sh

   copy

   APOLLO_KEY=<YOUR_APOLLO_KEY> \
   rover subgraph publish <YOUR_APOLLO_GRAPH_REF> \
   --schema ./products-schema.graphql \
   --name your-subgraph-name \
   --routing-url http://products.prod.svc.cluster.local:4001/graphql

   Note: You don't need to run this command.

5. Retrieve the values for YOUR_APOLLO_KEY and YOUR_APOLLO_GRAPH_REF from the modal and click Finish later.

Run the MCP server and router

1. Back in your terminal, in the root of the project directory, replace and run the following command to start the MCP Server and the router together:

   sh

   copy

   1APOLLO_GRAPH_REF=<YOUR_APOLLO_GRAPH_REF> APOLLO_KEY=<YOUR_APOLLO_KEY> \
   2rover dev --supergraph-config ./examples/TheSpaceDevs/supergraph.yaml \
   3--router-config ./examples/TheSpaceDevs/router.yaml \
   4--mcp ./examples/TheSpaceDevs/config.yaml

2. Test the router by navigating to http://localhost:4000 in your browser. You should see the Explorer, where you can run GraphQL queries against the router.

3. Remember, the router is configured to require authentication on all requests. Any operations without a valid Authorization token returns an UNAUTHENTICATED error. Run the operation:

   GraphQL

   copy

   1query GetAstronautsCurrentlyInSpace {
   2  astronauts(filters: { inSpace: true, search: "" }) {
   3    results {
   4      id
   5      name
   6      timeInSpace
   7      lastFlight
   8    }
   9  }
   10}

4. You should see an UNAUTHENTICATED error, which means the router is correctly enforcing authentication.

Step 4: Make requests with MCP Inspector

1. In a new terminal window, run the MCP Inspector:

   sh

   copy

   1npx @modelcontextprotocol/inspector

   The browser should open automatically with a proxy auth token.

2. In the MCP Inspector, select Streamable HTTP as the Transport Type and enter http://127.0.0.1:8000/mcp as the URL.

3. Click Connect. This triggers the OAuth flow, and you are redirected to the AuthKit sign-in page.

4. Sign in with the user you created in the WorkOS Dashboard and allow MCP Inspector access.

5. After you connect, the browser redirects back to MCP Inspector.

6. Click List Tools to see the available tools.

7. Select the GetAstronautsCurrentlyInSpace tool listed and click Run Tool.

8. You should see the results of the query, which means the authentication is working correctly.

You can select the Auth tab in MCP Inspector to see the details of the authenticated user and the access token.

Step 5: Make requests with an MCP client (Goose)

We'll use Goose as our MCP Client. Goose allows you to choose between many different LLMs and provides some built-in functionality for connecting to MCP servers, called Extensions.

Install the Goose CLI, following the instructions for your operating system. Set up the LLM provider of your choice with goose configure --> Configure Providers. Each provider has its own set of instructions, rate limiting and pricing.

Then, continue with the following steps:

1. In your terminal, run goose configure.

2. Select or enter the following answers at the prompts:

1. To start Goose, type goose. This will open a browser window and send you through the auth flow.

2. Sign in to AuthKit and authorize your MCP server to gain access to your tools.

3. In Goose, ask "What astronauts are in space right now?". This question is similar to the GetAstronautsCurrentlyInSpace operation from earlier, which fails as unauthenticated without the proper token.

4. Goose will select the GetAstronautsCurrentlyInSpace tool and respond with information about the astronauts found in TheSpaceDevs.

Troubleshooting

Common issues

MCP server won't start

• Error: "Port 8000 is already in use"

  • Solution: Kill any existing processes using port 8000 or specify a different port with the transport.port option or APOLLO_MCP_TRANSPORT__PORT env variable

• Error: "Failed to load supergraph configuration"

  • Solution: Verify you're running the command from the repo root directory

  • Solution: Check that the path to supergraph.yaml is correct

• Error: "License violation"

  • Solution: Ensure that the rover dev command includes valid APOLLO_KEY and APOLLO_GRAPH_REF values and that your plan supports authentication features.

• Error: "What URL is your subgraph running on?" question in terminal

  • Solution: Verify that the file path for your config files is correct. You should run the rover dev command from the root of the example project directory and the file paths should be relative to that root.

MCP Inspector connection issues

• Error: "Failed to connect to server"

  • Solution: Ensure the MCP server is running (check terminal output)

  • Solution: Verify you're using the correct URL (http://127.0.0.1:8000/mcp)

  • Solution: Check if your firewall is blocking the connection

MCP Server returns 401 Unauthorized after sign-in

• Issue: The OAuth flow completes, but every request to the MCP server fails with 401 Unauthorized

  • Solution: Check that http://127.0.0.1:8000/mcp is listed under Connect -> Configuration -> MCP resource indicators. Without it, AuthKit sets the aud claim to your environment's client ID, which doesn't match audiences.

  • Solution: Check that the resource indicator, audiences, and resource use exactly the same URL, including the scheme, host, port, and path. For example, localhost and 127.0.0.1 don't match.

  • Solution: Check that servers and issuers use your AuthKit domain without a trailing slash.

MCP Server returns 403 Forbidden

• Issue: Every tool call fails with 403 Forbidden and an insufficient_scope error

  • Solution: Check that every value in scopes appears in the access token's scope claim. You can see the claim by decoding the token, for example on the Auth tab in MCP Inspector. To turn off the global scope requirement, remove scopes from the auth configuration.

Client registration fails

• Issue: MCP Inspector or Goose fails at the client registration step

  • Solution: In the WorkOS Dashboard, go to Connect -> Configuration and check that MCP Auth shows Dynamic Client Registration as Enabled. MCP Inspector (without a CIMD metadata URL) and mcp-remote fail if only Client ID Metadata Document is enabled.

  • Solution: If your client uses CIMD, check that Client ID Metadata Document is Enabled and that AuthKit can reach the client's metadata URL over HTTPS.

Infinite loop during OAuth flow

• Issue: After signing in to AuthKit, MCP Inspector keeps refreshing and doesn't complete the OAuth flow

  • Solution: In MCP Inspector, open the Authentication panel in the sidebar. Clear out any values in the Header Name and Bearer Token fields. Then try connecting again.

  • Solution: In MCP Inspector, select Clear OAuth State and try connecting again.

Getting help

If you're still having issues:

1. Check the Apollo MCP Server GitHub issues.

2. Join the Apollo Community MCP Server Category.

3. Contact your Apollo representative for direct support.
